Brand new HP 506523-001 250W Power Supply For HP DX2818 DX2810

250W For HP DX2818 DX2810 Power Supply 508466-001 506523-001 PS-5251-02, enjoys 6 Months Warranty,30-Day Money Back!

HP 506523-001 Power Supply

Brand new 506523-001 PSU for DX2718 2310 DX2318 250W Power Supply ATX-250-12Z ATX0250F5WA 5188-2623 PS-5251-02.

  • Part Number:PS-5251-02
  • for DX2718 2310 DX2318
  • Wattage: 250W
  • Condition:
    Brand new, Tested, Working Good
Our Price : AU$
  • Qty:
$ QTY:2-5
$ QTY:6-10
$ QTY:11+
  • Availability: In stock
  • Condition: Brand new, Tested, Working Good
  • Warranty: 6 Months Warranty | 30-Day Money Back
  • Compatible Brand:For HP
  • Certification:CE FCC ROHS

Product Details

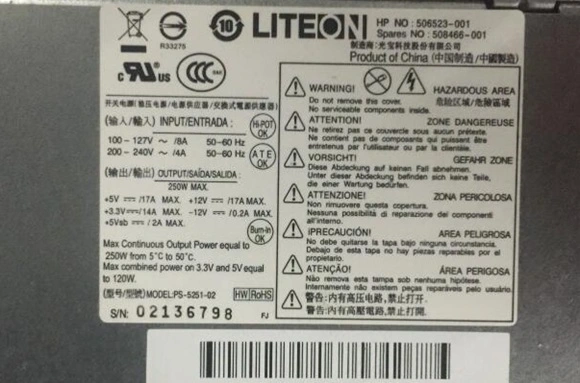

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.
Type: ATX Form Factor
Dimension (L x W x H) cm: 15.00 x 14.00 x 8.50cm
AC Input:
100-127V ~ /8A , 200-240V~/4A
DC Output : +5V / 15A ~+12V / 17A, +3.3V / 13A ~ -12V/ 0.3AMax, +5VsbV / 2A Max,
Input Frequency Range: 50-60Hz
Max Output Power: 250W Max Power
Connector :
24-Pin
1x 4pin Molex (HDD)
1x 4pin Floppy (FDD)
4x Serial-ATA

Model: PS-5251-02 ATX0250F5WA HP-D2502V0

Applicable to HP DX2355 DX7400 DX7408 DX2718 DX2310 DX2318 and other MT models

Spare part number: 506523-001 508466-001 480299-001 480723-001



HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new HP 506523-001 Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
