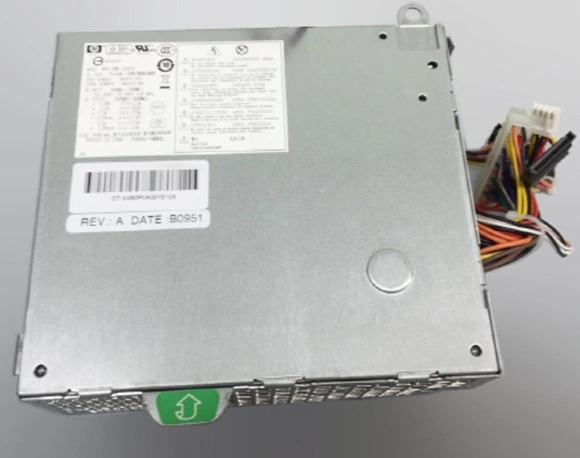

Brand new 462435-001 240W Power Supply for HP DC5800 DC5850 DC7900 SFF

• Product Details
• Power Supply Tips

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.
240W Power Supply for DC5800 DC5850 DC7900 SFF
Important: This is the standard 24-Pin ATX connector model (white connector). If you need the micro-ATX 24-Pin connector (black connector), please see part number 437797-001.
AC Input :
100-240V 50-60HZ 3.5A
DC Output :
+5.08V 17.0A
+3.33V 15.0A
+12.0V 7.5A
+12.0VCPU 11.5A
-12.0V 0.15A
+5.08VAUX 3.0A

PART NUMBER : 455324-001,460974-001,462435-001
WATTAGE : 240 WATT
MODEL NO.: DPS-240MB-3 A,PC6019

Connectors
(1) 24-Pin ATX Connector - Standard Size, White Connector
(1) 12V 4-Pin Connector
(1) 4-Pin Fan Conector
(1) Floppy Connector
(3) SATA Connectors

Fits the Following Models:
HP dc5850
HP dc7900
HP dc5800
HP DC7800

HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new hp 462435-001 Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
