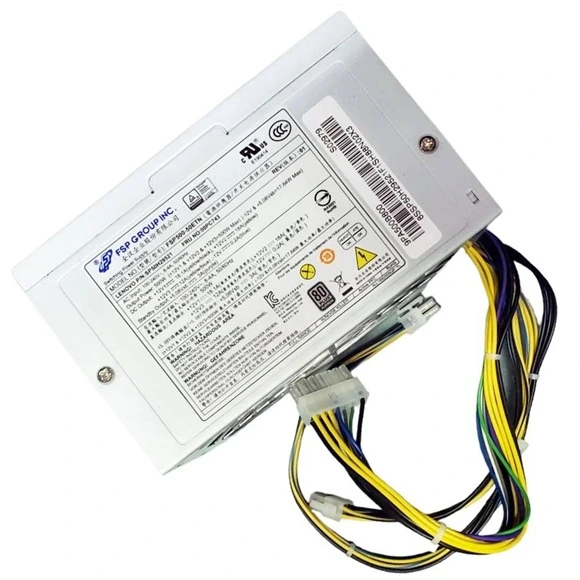

Brand new FSP500-50ETN FSP Group 500W Power Supply

• Product Details
• Power Supply Tips

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.

PSU 14Pin 500W Power Supply FSP500-50ETN FSP500-50AGPA FSP450-50ETN HK380-16FP PCB037 PCC001

High Power Output:With 500W of power, this PSU is capable of handling demanding workloads, making it ideal for high-performance computing.

Universal Compatibility:Designed to fit a wide range of Lenovo models, this power supply is a versatile solution for various ThinkCentre systems.

80 PLUS PLATINUM Certification:Boasting 80 PLUS PLATINUM efficiency, this power supply minimizes energy waste, ensuring a greener computing experience.

Input
100-240V - 4A 50-60Hz
100-240V - 8A 50-60Hz

Output
+12V - 18.1A
+12V - 12A
+12V - 18A
-12V - 0.2A
+5.08V - 3A
Wattage - 500W

Model Number : FSP500-50ETN SP50H29521 00PC743
For Lenovo ThinkStation P520c

HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new FSP FSP500-50ETN Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
