Home :: For Dell Power Supply :: For Dell DPS-240AB-9 A Power Supply

Brand new DPS-240AB-9 A 240W Power Supply for Dell Optiplex 3040 5040 7040 MT

For Dell Optiplex 3040 5040 7040 MT Inspiron 3650 240W Power Supply DPS-240AB-9 A 6WX7D, enjoys 6 Months Warranty,30-Day Money Back!

For For Dell DPS-240AB-9 A Power Supply

DPS-240AB-9 A 6WX7D 06WX7D power supply for dell optiplex 3040 3650 5040 7040.All power supplies are tested by our in house technicians and they are guaranteed to function properly.

  • Part Number: DPS-240AB-9 A
  • Connector: 1X 8PIN; 1X 4PIN
  • Wattage: 240 WATT
  • Condition:
    Brand new, Tested, Working Good
Our Price : AU$
  • Qty:
$ QTY:2-5
$ QTY:6-10
$ QTY:11+
  • Availability: In stock
  • Condition: Brand new, Tested, Working Good
  • Warranty: 6 Months Warranty | 30-Day Money Back
  • Compatible Brand:For Dell
  • Certification:CE FCC ROHS

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.

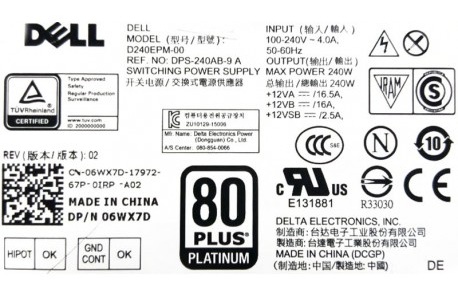

AC Input:
100-240v ac 50-60hz 4.0a
DC Output:
+12va ⸺ 16.5a
+12vb ⸺ 16a
+12vsb ⸺ 2.5a
240w
Part Number : 6WX7D,06WX7D,CN-06WX7D
Model Number : D240EPM-00
Ref. No. : DPS-240AB-9 A
Max Power 240W
Application Dell Optiplex 3040 7040 9040 Power Supply
Connectors 1X 8PIN; 1X 4PIN


Compatible Models
For Dell optiplex 3040 3650 5040 7040 Dell inspiron 3650


HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new dell DPS-240AB-9 A Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
