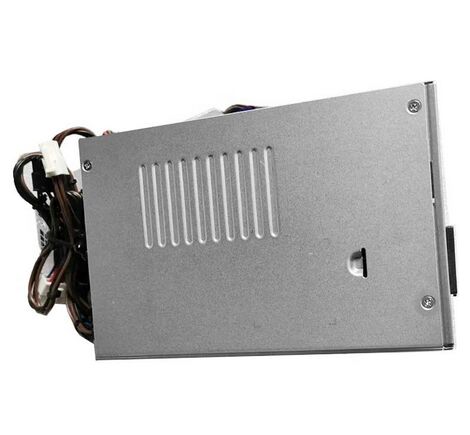

Brand new Dell V0YN7 300w Power Supply

V0YN7 power supply For Dell Inspiron 3910 psu V3991 7000MT 3910 3020, enjoys 3 Months Warranty,30-Day Money Back!

Dell V0YN7 Power Supply

Brand new V0YN7 Power Supply for Dell Inspiron 3910 psu V3991 7000MT 3910 3020.All power supplies are tested by our in house technicians and they are guaranteed to function properly.

  • Part Number: D300EBS-00
  • Connectors:
    (1) 8-Pin Connector ATX SYS (11.5")
    (1) 4-Pin Connector (25" ATX CPU1)
    (1) 6+2 Pin Connector (13.5" GFX1)
  • Wattage: 300 WATT
  • Condition:
    Brand new, Tested, Working Good
Our Price : AU$
  • Qty:
$ QTY:2-5
$ QTY:6-10
$ QTY:11+
  • Availability: In stock
  • Condition: Brand new, Tested, Working Good
  • Warranty: 3 Months Warranty | 30-Day Money Back
  • Compatible Brand:For Dell
  • Certification:CE FCC ROHS

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.
Input voltage : 100-240V~/4.6A (50-60Hz)
Output voltage : +12VA==/16.5A +12VB==/15A +12VC==/12A
Product color : Silver
Connector Dimension : 18.6*12*6.3cm

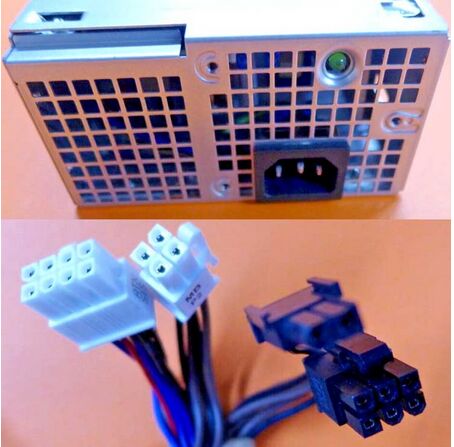

This power supply has the following connectors:

Connectors:
(1) 8-Pin Connector ATX SYS (11.5")
(1) 4-Pin Connector (25" ATX CPU1)
(1) 6+2 Pin Connector (13.5" GFX1)


Model No. D300EBS-00, L300EBS-00, H300EBS-00
Part No. J1R8X 0J1R8X, T7X04 0T7X04, V0YN7 0V0YN7



Compatible For Dell Desktop:
Dell Inspiron 3910 Dell PowerEdge T150



HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new dell V0YN7 Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
