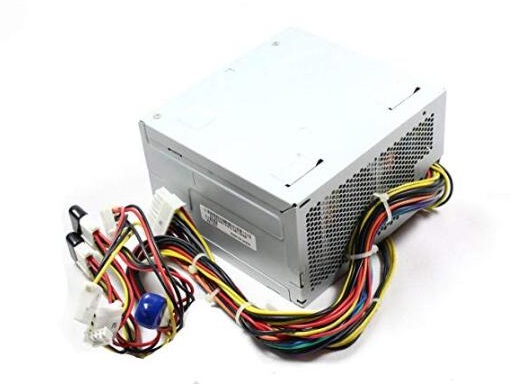

Brand new For Dell NPS-250KB 250W Power Supply for Dimension 1100 3000 4600

ATX Power Supply 250W For Dell NPS-250KB 0DK266 DK266 Dimension 1100 3000 4600 , enjoys 6 Months Warranty,30-Day Money Back!

For Dell NPS-250KB Power Supply

Brand new DK266 0DK266 For DELL Dimension 1100 3000 4600 Power Supply NPS250-KB F NPS-250KB A000119 NPS-250KB F.All power supplies are tested by our in house technicians and they are guaranteed to function properly.

  • Model Number: NPS-250KB
  • P1 Connectors: 20-Pin ATX
  • Wattage: 250 WATT
  • Condition:
    Brand new, Tested, Working Good
Our Price : AU$
  • Qty:
  • Availability: In stock
  • Condition: Brand new, Tested, Working Good
  • Warranty: 6 Months Warranty | 30-Day Money Back
  • Compatible Brand:For Dell
  • Certification:CE FCC ROHS

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.
Power Rating: 250W
Connectors:
1 x Motherboard (20 - Universal Connector)
5 x Molex Power
1 x 4 Pin AUX Power
1 x FDD Connector
Dimensions: 140mm x 150mm x 85mm

PART NUMBER : DK266 0DK266
MODEL NO.:NPS250-KB F,NPS-250KB,A000119,NPS-250KB F
TYPE : SATA POWER SUPPLY
COMPATIBILITY:
For Dell Dimension B110， Dell Dimension 1100， Dell Dimension 2200， Dell Dimension 2300
， Dell Dimension 2350， Dell Dimension 2400， Dell Dimension 4300，
For Dell Dimension 4400， Dell Dimension 4500， Dell Dimension 4550，
For Dell Dimension 4600， Dell Dimension 8200， Dell Dimension 8250，
For Dell Dimension 8300， Dell OptiPlex GX60 SMT， Dell OptiPlex GX150 SMT，
For Dell OptiPlex 160L SMT， Dell OptiPlex 170L SMT，
For Dell OptiPlex GX240 SMT， Dell OptiPlex GX260 SMT， Dell OptiPlex GX270 SMT，
For Dell PowerEdge 400SC， Dell PowerEdge 500SC， Dell PowerEdge 600SC，
For Dell Precision Workstation 340， Dell Precision Workstation 350， Dell Precision Workstation 360


HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new dell NPS-250KB Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
