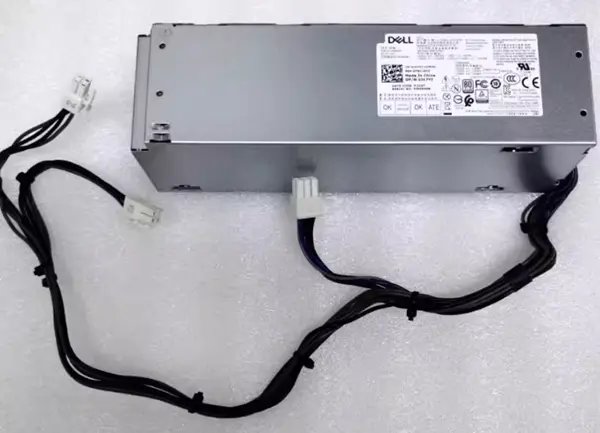

Brand new L200EBS-01 Dell 200 Watts Power Supply For Dell Optiplex 3080 7080 SFF

For Dell Optiplex 3080 SFF 200W Power Supply L200EBS-01 5TVM5, enjoys 6 Months Warranty,30-Day Money Back!

For Dell L200EBS-01 Power Supply

Brand new For Dell Optiplex 3080 3470 SFF 200W Power Supply 5TVM5 L200EBS-01.All power supplies are tested by our in house technicians and they are guaranteed to function properly.

  • Part Number: L200EBS-01
  • Dimensions: 82mm x 62mm x 219mm
  • Wattage: 200 WATT
  • Condition:
    Brand new, Tested, Working Good
Our Price : AU$
  • Qty:
$ QTY:2-5
$ QTY:6-10
$ QTY:11+
  • Availability: In stock
  • Condition: Brand new, Tested, Working Good
  • Warranty: 6 Months Warranty | 30-Day Money Back
  • Compatible Brand:For Dell
  • Certification:CE FCC ROHS

Product Details

For Dell Optiplex 3080 SFF 200W Power Supply L200EBS-01 5TVM5
MAX. OUTPUT POWER: 200W
AC INPUT
100-240V ~ 3.2A (50-60Hz)
DC OUTPUT
+12VA1 = /16.5A MAX
+12VA2 = /16.5A MAX
Dimensions
62mm x 82mm x 220mm
Connectors
(1) 6-Pin Connector (P1 9.5")
(2) 4-Pin Connector (P2 22") (P4 22")

Part Number: K92TW,0K92TW,5TVM5,05TVM5
MPN: H200EBS-01 ,L200EBS-01

Compatible Model No:
Dell Optiplex 3080 5080 7080 G5 3090 5090 7090
*This Will Only Work With Models That Are 80 Series or Higher
*This Will Not Work in:
3010 3020 3030 3040 3050 3060 3070
5010 5020 5030 5040 5050 5060 5070
7010 7020 7030 7040 7050 7060 7070


HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new dell L200EBS-01 Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
